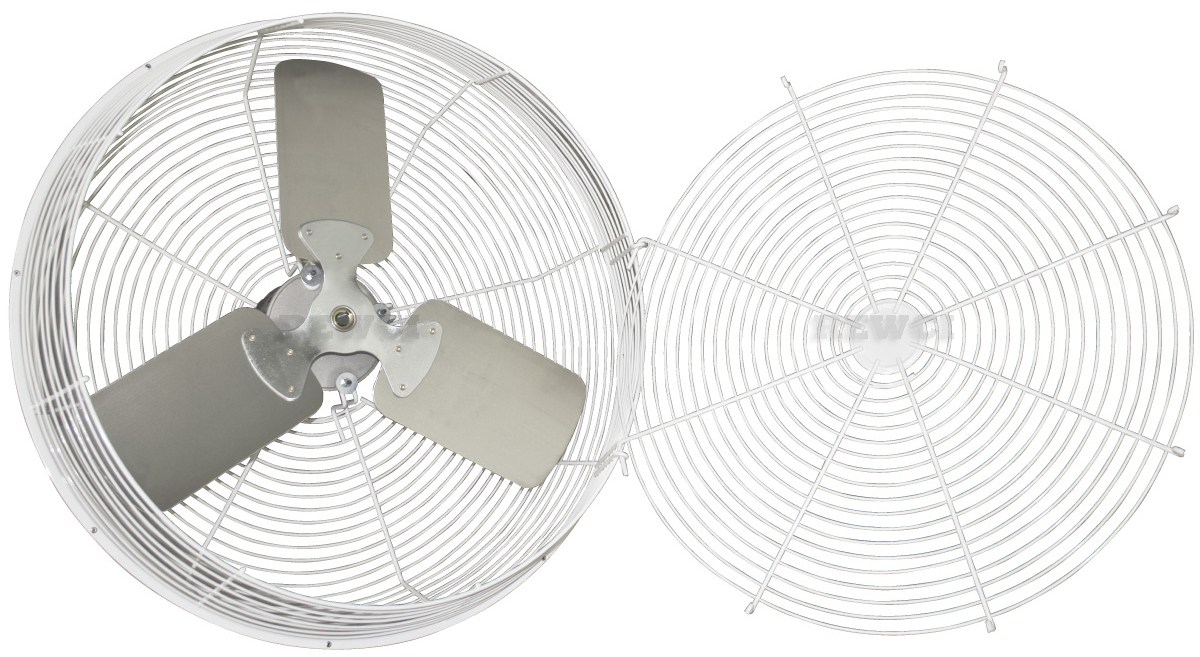

24" Green Breeze HAF Fan - VBG24

Description

The Green Breeze HAF fan is one of the most energy efficient HAF fans for sale. A HAF fan can help reduce your winter heating costs by efficiently moving air throughout the greenhouse, and therefore creating a more uniform temperature. The tapered side guard creates a tight air pattern that throws air much farther than conventional basket fans. The motor on this fan is variable speed, you would need a separate variable speed control in order to adjust the fan speed.

The mounting bracket on this fan connects directly to the yoke of the motor which reduces vibrations and allows for smooth fan operation and this fan can be used with misting/fogging equipment. Use this fan to help eliminate hot/cold spots throughout your greenhouse.

Features:

Direct Drive Motor - No belts or bearings to maintain
White powder coated guards
Attached cord with 3-prong plug pre-wired for 115 Volts
Mounting bracket included
Variable speed motor (controller required)

Specifications:

Size: 24 Inches
Cord length: 10'
Blade: 3-Alm
Phs: 1
Spd: 1/Var (variable speed requires separate variable speed control to adjust fan speed)
Warranty: 2 years
UL/CUL recognized
Download the Green Breeze HAF Fan installation Instructions

HP	Volts	Amps	Hz	FPM*	Thrust (lbf)	Thrust Eff. Ratio **	kW	RPM	Thrust CFM	Thrust CFM/Watt
1/2	115	4.8	60	1230	5.41	12.4	.435	1666	5250	12.1

Amp information as documented on motor name plate
Variable speed fans require separate variable speed control to adjust fan speed
