Home > Bathroom Exhaust Fans - Ceiling Mounted > Panasonic FV-05-11VKL2 Bathroom Exhaust Fan

Panasonic FV-05-11VKL2 Bathroom Exhaust Fan

Panasonic
Bathroom Exhaust Fans - Ceiling Mounted
Panasonic FV-05-11VKL2 Bathroom Exhaust Fan

Panasonic WhisperGreen Select with DC Motor, Pick-A-Flow and Replaceable LED Light

The WhisperGreen Select is a great new series because it is customizable and very easy to install and operates very quietly.  The FV-05-11VKL2 allows you to pick the flow it moves and you have the choice of 50, 80, or 110 CFM.  This bathroom ventilation fan also features an LED light with a GU24 base, and these LED lights can be replaced when needed.

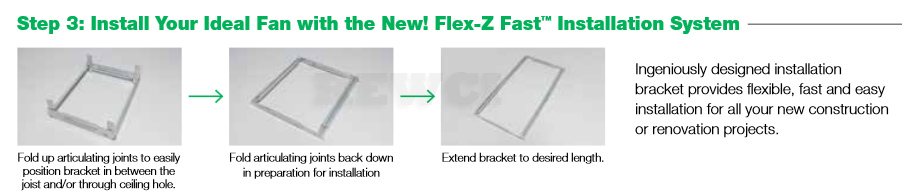

Installation of this bathroom fan is very easy because it features the new Flex-Z Fast Installation System which has a bracket that extends to the length you need and it can accomodate joint spacing up to 24" on center.

The DC Motor on this bath fan has SmartFlow Technology which allows the fan to sense the static pressure and the speed automatically increases to make sure that the desired CFM is not compromised.  Another benefit of a DC motor is that it is brusheless and very energy efficient. This is the same DC Motor technology that is used in the WhisperGreen series of bath fans from Panasonic.

This new WhisperGreen Select FV-05-11VKL2  can be used instead of the following WhisperGreen series fans- FV-08VKSE3, FV-08VKME3, FV-08VKML4, FV-08VKL4, FV-11VKL4, FV-08VKSL4. This fan can accomodate up to 3 Plug N' Play modules (modules purchased separately).

Features:
  • Integrated dual 4" or 6" duct adapter
  • Replaceable LED light included
  • Easy installation
  • Choose your CFM -50, 80, or 110
  • Energy Star Qualified
  • DC Motor
  • Fits in 2 x 8 construction
  • Thermal fuse protection
  • UL Listed for use over a shower enclosure

Specifications:

  • Sound level:  <0.3 sones
  • Warranty: DC Motor - 6 years, other parts 3 years. LED 5 years
  • Duct Diameter: 4" or 6"
  • California Title 24 compliant
  • Washington State VIAQ Code compliant
  • Grille size: 13 inches square
  • Max current (amps): 0.42
  • Power: 120/60
  • Lamp Watts - 2 x 7 watts with GU24 base - Model LPHT7
  • Lumens: 550 per lamp
  • Lumens per watt: 80
  • Lamp Color Rendering Index: > 80
  • Light Color Temperature (Kelvin): 3000 K
  • Motor Bearing: Ball
  • Blower Wheel Type: Sirocco

Watch a Video about WhisperGreen Select Installation







Watch a video about WhisperGreen Select Wiring





Downloads (PDFs)

FV-05-11VKL2 Installation Manual
FV-05-11VKL2 Submittal Sheet
FV-05-11VKL2 Service Manual
Panasonic WhisperGreen Select Brochure

WhisperGreen Select Cross Reference Guide


fv-05-11vkl1-bathroom-fan.html
$229.00
Panasonic FV-05-11VKL2 Bathroom Exhaust Fan
Panasonic FV-05-11VKL2 Bathroom Exhaust FanPanasonic FV-05-11VKL2 Bathroom Exhaust FanPanasonic FV-05-11VKL2 Bathroom Exhaust FanPanasonic FV-05-11VKL2 Bathroom Exhaust FanPanasonic FV-05-11VKL2 Bathroom Exhaust Fan
Item #FV-05-11VKL2
AvailabilityUsually ships the next business day
MAP PriceView Your Price Now
Quantity
This Item Qualifies For Free Ground Shipping


Description

Panasonic WhisperGreen Select with DC Motor, Pick-A-Flow and Replaceable LED Light

The WhisperGreen Select is a great new series because it is customizable and very easy to install and operates very quietly.  The FV-05-11VKL2 allows you to pick the flow it moves and you have the choice of 50, 80, or 110 CFM.  This bathroom ventilation fan also features an LED light with a GU24 base, and these LED lights can be replaced when needed.

Installation of this bathroom fan is very easy because it features the new Flex-Z Fast Installation System which has a bracket that extends to the length you need and it can accomodate joint spacing up to 24" on center.

The DC Motor on this bath fan has SmartFlow Technology which allows the fan to sense the static pressure and the speed automatically increases to make sure that the desired CFM is not compromised.  Another benefit of a DC motor is that it is brusheless and very energy efficient. This is the same DC Motor technology that is used in the WhisperGreen series of bath fans from Panasonic.

This new WhisperGreen Select FV-05-11VKL2  can be used instead of the following WhisperGreen series fans- FV-08VKSE3, FV-08VKME3, FV-08VKML4, FV-08VKL4, FV-11VKL4, FV-08VKSL4. This fan can accomodate up to 3 Plug N' Play modules (modules purchased separately).

Features:
  • Integrated dual 4" or 6" duct adapter
  • Replaceable LED light included
  • Easy installation
  • Choose your CFM -50, 80, or 110
  • Energy Star Qualified
  • DC Motor
  • Fits in 2 x 8 construction
  • Thermal fuse protection
  • UL Listed for use over a shower enclosure

Specifications:

  • Sound level:  <0.3 sones
  • Warranty: DC Motor - 6 years, other parts 3 years. LED 5 years
  • Duct Diameter: 4" or 6"
  • California Title 24 compliant
  • Washington State VIAQ Code compliant
  • Grille size: 13 inches square
  • Max current (amps): 0.42
  • Power: 120/60
  • Lamp Watts - 2 x 7 watts with GU24 base - Model LPHT7
  • Lumens: 550 per lamp
  • Lumens per watt: 80
  • Lamp Color Rendering Index: > 80
  • Light Color Temperature (Kelvin): 3000 K
  • Motor Bearing: Ball
  • Blower Wheel Type: Sirocco

Watch a Video about WhisperGreen Select Installation







Watch a video about WhisperGreen Select Wiring





Downloads (PDFs)

FV-05-11VKL2 Installation Manual
FV-05-11VKL2 Submittal Sheet
FV-05-11VKL2 Service Manual
Panasonic WhisperGreen Select Brochure

WhisperGreen Select Cross Reference Guide


Question: Can this fan be fun at a continuous low speed and boosted with the motion detector?
Answer: Yes, you would just need to add the Multi-Speed Module and the SmartAction Motion Sensor .
Question: Can you use a dimmer switch with the LED lights in this unit?
Answer: No.
