Home > Industrial Fans > 20" Green Breeze HAF Fan

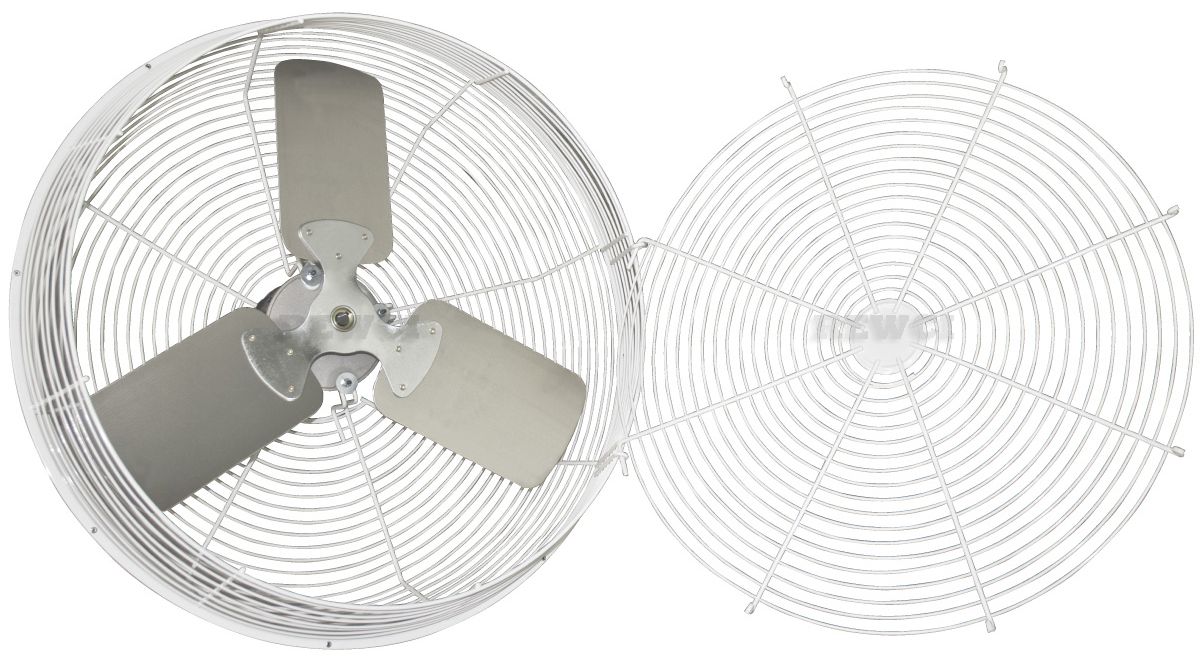

20" Green Breeze HAF Fan

J&D Manufacturing
Industrial Fans
20" Green Breeze HAF Fan

The Green Breeze HAF fan is one of the most energy efficient HAF fans for sale.  A HAF fan can help reduce your winter heating costs by efficiently moving air throughout the greenhouse, and therefore creating a more uniform temperature.

This Green Breeze fan is packed with features like a motor with completely sealed ball bearings, a patented open front guard to reduce maintenance time and costs and it arrives completely assembled.  The motor on this fan is variable speed, you would need a separate variable speed control in order to adjust the fan speed.

The mounting bracket on this fan connects directly to the yoke of the motor which reduces vibrations and allows for smooth fan operation.

The tapered side guard creates a tight air pattern that throws air much farther than conventional basket fans. This fan can be used with misting/fogging equipment.

Features:

  • Direct Drive Motor - No belts or bearings to maintain
  • White powder coated guards
  • Attached cord with 3-prong plug pre-wired for 115 Volts
  • Includes mounting bracket
  • Variable speed motor (controller required)

Specifications:

  • Size: 20 Inches
  • Cord length: 10'
  • Blade: 3-Alm
  • Phs: 1
  • Spd: 1/Var (variable speed requires separate variable speed control to adjust fan speed)
  • Warranty: 2 years
  • UL/CUL recognized
  • Download the Green Breeze HAF Fan installation Instructions
HP Volts Amps Hz FPM* Thrust (lbf) Thrust Eff. Ratio ** kW RPM Thrust
CFM
Thrust CFM/Watt
1/3 115 3.8 60 1090 3.75 12.2 .308 1691 3650 11.8

Amp information as documented on motor name plate
Variable speed fans require separate variable speed control to adjust fan speed

Warning. This product can expose you to chemicals including lead or chromium which are known to the State of California to cause cancer and or birth defects or other reproductive harm. For more information to go www.P65Warnings.ca.gov


20-inch-haf-fan.html
$204.00
20
20202020
Item #JD VBG20
AvailabilityUsually ships the next business day
Sale Price$204.00
Quantity


Description

The Green Breeze HAF fan is one of the most energy efficient HAF fans for sale.  A HAF fan can help reduce your winter heating costs by efficiently moving air throughout the greenhouse, and therefore creating a more uniform temperature.

This Green Breeze fan is packed with features like a motor with completely sealed ball bearings, a patented open front guard to reduce maintenance time and costs and it arrives completely assembled.  The motor on this fan is variable speed, you would need a separate variable speed control in order to adjust the fan speed.

The mounting bracket on this fan connects directly to the yoke of the motor which reduces vibrations and allows for smooth fan operation.

The tapered side guard creates a tight air pattern that throws air much farther than conventional basket fans. This fan can be used with misting/fogging equipment.

Features:

  • Direct Drive Motor - No belts or bearings to maintain
  • White powder coated guards
  • Attached cord with 3-prong plug pre-wired for 115 Volts
  • Includes mounting bracket
  • Variable speed motor (controller required)

Specifications:

  • Size: 20 Inches
  • Cord length: 10'
  • Blade: 3-Alm
  • Phs: 1
  • Spd: 1/Var (variable speed requires separate variable speed control to adjust fan speed)
  • Warranty: 2 years
  • UL/CUL recognized
  • Download the Green Breeze HAF Fan installation Instructions
HP Volts Amps Hz FPM* Thrust (lbf) Thrust Eff. Ratio ** kW RPM Thrust
CFM
Thrust CFM/Watt
1/3 115 3.8 60 1090 3.75 12.2 .308 1691 3650 11.8

Amp information as documented on motor name plate
Variable speed fans require separate variable speed control to adjust fan speed



Warning. This product can expose you to chemicals including lead or chromium which are known to the State of California to cause cancer and or birth defects or other reproductive harm. For more information to go www.P65Warnings.ca.gov
