Home > J&D Manufacturing Fans > J & D Manufacturing Ventilation Fans > 12" Variable Speed Industrial Fan

12" Variable Speed Industrial Fan

J&D Manufacturing
J & D Manufacturing Ventilation Fans
12" Variable Speed Industrial Fan

12" Variable Speed Industrial Fan

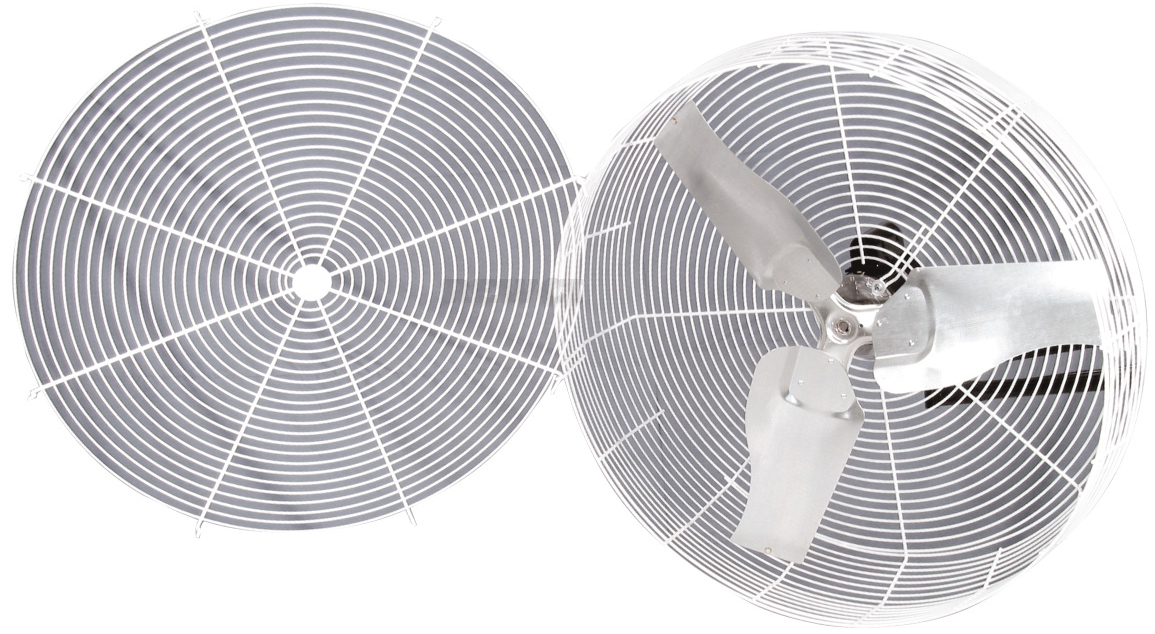

The Barnstormer is the only industrial fan on the market with an exclusive hinged open front guard feature.  This patented design helps cut cleaning and maintenance. No tools, no down time. Dirt of dust build-up is removed in minutes. Back to full energy efficient, high-output operation.

This industrial fan is a leader in air performance and dependability. The patented easy open front guard drastically reduces the cleaning time and maintenance cost of your fans. The tapered side guard creates a tight pattern of high velocity air and throws the air much further than other conventional basket fans. The front guard is further from the blade to reduce air resistance. The exceptional fan velocity allows for greater distance between fans, which means fewer fans in your facility and more money in your pocket.

Features:

  • Patented open front guard lowers maintenance cost (U.S. patent No. 5,348,447)
  • Industry leading air velocity
  • Quiet operation
  • No belts or bearings to maintain
  • Fan and guards come completely assembled
  • Variable speed motor
  • Ceiling or post-mount brackets available
  • Totally enclosed, maintenance free, high efficiency, UL/ULC recognized motor
  • Single phase models have automatic overload protection

Specifications:

Size HP Volt Amps* Hz Phs Spd FPM Thrust (lbF) Thrust Eff. Ratio kW RPM Thrust CFM Thrust CFM/ watt Blade
12" 1/10 115/230 1.0/0.5 60 1 1/Varˆ 525 .76 7.0 .109 1705 970 8.9 3-Alum

ˆ Variable Speed fans require separate variable speed control to adjust fan speed
* AMP information as documented on motor name plate


barnstormer-12-inch-fan.html
$137.00
12
121212
Item #JD VBS12
AvailabilityUsually ships the next business day
Sale Price$137.00
Quantity


Description

12" Variable Speed Industrial Fan

The Barnstormer is the only industrial fan on the market with an exclusive hinged open front guard feature.  This patented design helps cut cleaning and maintenance. No tools, no down time. Dirt of dust build-up is removed in minutes. Back to full energy efficient, high-output operation.

This industrial fan is a leader in air performance and dependability. The patented easy open front guard drastically reduces the cleaning time and maintenance cost of your fans. The tapered side guard creates a tight pattern of high velocity air and throws the air much further than other conventional basket fans. The front guard is further from the blade to reduce air resistance. The exceptional fan velocity allows for greater distance between fans, which means fewer fans in your facility and more money in your pocket.

Features:

  • Patented open front guard lowers maintenance cost (U.S. patent No. 5,348,447)
  • Industry leading air velocity
  • Quiet operation
  • No belts or bearings to maintain
  • Fan and guards come completely assembled
  • Variable speed motor
  • Ceiling or post-mount brackets available
  • Totally enclosed, maintenance free, high efficiency, UL/ULC recognized motor
  • Single phase models have automatic overload protection

Specifications:

Size HP Volt Amps* Hz Phs Spd FPM Thrust (lbF) Thrust Eff. Ratio kW RPM Thrust CFM Thrust CFM/ watt Blade
12" 1/10 115/230 1.0/0.5 60 1 1/Varˆ 525 .76 7.0 .109 1705 970 8.9 3-Alum

ˆ Variable Speed fans require separate variable speed control to adjust fan speed
* AMP information as documented on motor name plate


Question: Does it have a remote control?
Answer: No.
