24" Variable Speed Industrial Fan

J&D Manufacturing
Industrial Fans
24" Variable Speed Industrial Fan

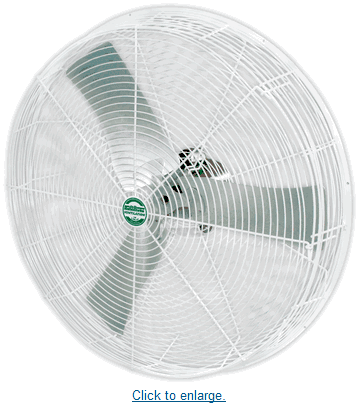

Barnstormer 24" Variable Speed Industrial Fan

The Barnstormer is the only industrial fan on the market with an exclusive hinged open front guard feature.  This patented design helps cut cleaning and maintenance. No tools, no down time. Dirt of dust build-up is removed in minutes. Back to full energy efficient, high-output operation.

The patented easy open front guard on this industrial fan drastically reduces the cleaning time and maintenance cost of your fans. The tapered side guard creates a tight pattern of high velocity air and throws the air much further than other conventional basket fans. The front guard is further from the blade to reduce air resistance. The exceptional fan velocity allows for greater distance between fans, which means fewer industrial fans in your facility and more money in your pocket.

Features:

  • Patented open front guard lowers maintenance cost (U.S. patent No. 5,348,447)
  • Industry leading air velocity
  • Quiet operation
  • No belts or bearings to maintain
  • Hardwired unit - no cords!
  • Fan and guards come completely assembled
  • Totally enclosed, maintenance free, high efficiency, UL/CUL recognized motor
  • Single phase models have automatic overload protection

Specifications:

Size HP Volt Tested Amps Hz Phs Spd FPM Thrust (lbF) Thrust Eff. Ratio kW RPM Thrust CFM Thrust CFM/ watt Blade
24" 1/2 115/230 4.8/2.4 60 1 1/Var˘ 1230 5.41 12.4 .435 1666 5250 12.1 3-Alum

*Amp information as documented on motor name plate
˘ Variable speed fans require separate variable speed control to adjust fan speed




Warning. This product can expose you to chemicals including lead or chromium which are known to the State of California to cause cancer and or birth defects or other reproductive harm. For more information to go www.P65Warnings.ca.gov


barnstormer-24-inch-fan.html
$229.00
24
24242424
Item #JD VBS24
AvailabilityUsually ships the next business day
Sale Price$229.00
Color
Quantity


Description

Barnstormer 24" Variable Speed Industrial Fan

The Barnstormer is the only industrial fan on the market with an exclusive hinged open front guard feature.  This patented design helps cut cleaning and maintenance. No tools, no down time. Dirt of dust build-up is removed in minutes. Back to full energy efficient, high-output operation.

The patented easy open front guard on this industrial fan drastically reduces the cleaning time and maintenance cost of your fans. The tapered side guard creates a tight pattern of high velocity air and throws the air much further than other conventional basket fans. The front guard is further from the blade to reduce air resistance. The exceptional fan velocity allows for greater distance between fans, which means fewer industrial fans in your facility and more money in your pocket.

Features:

  • Patented open front guard lowers maintenance cost (U.S. patent No. 5,348,447)
  • Industry leading air velocity
  • Quiet operation
  • No belts or bearings to maintain
  • Hardwired unit - no cords!
  • Fan and guards come completely assembled
  • Totally enclosed, maintenance free, high efficiency, UL/CUL recognized motor
  • Single phase models have automatic overload protection

Specifications:

Size HP Volt Tested Amps Hz Phs Spd FPM Thrust (lbF) Thrust Eff. Ratio kW RPM Thrust CFM Thrust CFM/ watt Blade
24" 1/2 115/230 4.8/2.4 60 1 1/Var˘ 1230 5.41 12.4 .435 1666 5250 12.1 3-Alum

*Amp information as documented on motor name plate
˘ Variable speed fans require separate variable speed control to adjust fan speed






Warning. This product can expose you to chemicals including lead or chromium which are known to the State of California to cause cancer and or birth defects or other reproductive harm. For more information to go www.P65Warnings.ca.gov


Question: Can this fan be ceiling mounted like a traditional ceiling fan?
Answer: You can purchase a ceiling mount bracket for the 24 inch Barnstormer fan, but it will not hang like a traditional ceiling fan.
Question: Can this be used outdoors?
Answer: No, the Barnstormer 24 Inch Fan is not rated for outdoor use. You may consider one of our other Outdoorwallmountedfans.
