JD360 Destraitifier Fan

The JD360 is an effective destratification fan that mixes the heavy, cool, dense air that is sunk to ground level with the warm, light, thin air that lingers towards the top of your facility.

This fan gives you a comfortable and uniform healthy environment with a more even mixing of air in your greenhouse or other industrial applications. this fan helps reduce temp stratification and dead zones as well as moisture condensation. It can help reduce the temperature gradient from floor to ceiling by up to 55%.

It's the perfect vertical, low-airspeed circulator and it comes with a  IP66 rated Gold Star Motor that is covered by a 3-year warranty. It is recommended that you space the fans 60' from each other and 30' from the wall

The JD360 fan is very easy to install and requires no maintenance. If you need pallet quantity, give us a call and we can send you a quote.

Features:

• Reduces Temp stratification and dead zones
• Reduces Moisture condensation
• Rduces Electric bills

Specifications:

• Size: 18"
• Speeds: 1
• HP: 1/4
• Volts: 115/230
• Amps NP: 3.9/1.95
• Hz: 60
• Phase: 1
• FPM @ Cone: 1790
• Drive: Direct
• Prop: 6-ply
• Guards and Frame are heavy gauge powder-coated steel
• IP66 rated Gold Star Motor-dust tight, wash down from any angle
• 3-Year Warranty on the ENTIRE fan

Download the JD360 Installation instructions
Download the JD360 Brochure

For best results the fans should be mounted:

• Between 7’ and 16’ from floor
• A distance of 60’ between each fan

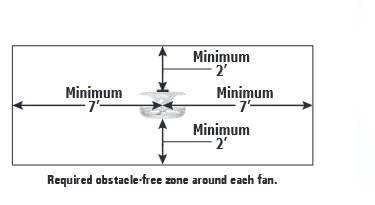

• With an obstacle free zone of 7’ on center horizontally and 2’ from bottom of guard and top of cone vertically

APPLICATIONS:
Greenhouse
Industrial
Poultry
