Home > Garage Ventilation > 20 Inch Wall Exhaust Fan - Variable Speed Controllable

Twister Fan Wall Mount Exhaust Fan - 20 Inch

J&D Manufacturing
Garage Ventilation
20 Inch Wall Exhaust Fan - Variable Speed Controllable

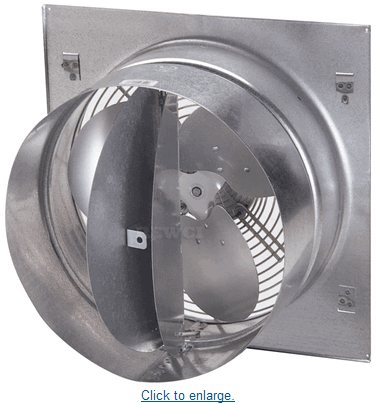

The Twister Exhaust Fan has been around unchanged for 20 years.  If it works, why change it!  This 20" Twister exhaust fan features a butterfly shutter which opens on startup and closes when the fan is off.  This exhaust fan is perfect for ventilating garages, and other industrial and commercial spaces.

The motor is totally enclosed, maintenance free and has completely sealed ball bearings.  The fan is fully assembled and the rear guard conforms to OSHA 1910.212 (a)(5) safety requirements.  All you need to do to install it is cut your rough opening, attach to your building and wire it in.  For specific installation instructions you may download them here.

The prop is made from aluminum and has a zinc plated hub to provide smooth, vibration-free operation.  The 18 gauge galvanized butterfly shutter has an adjustable, positive draft-free closure.  The housing is heavy duty 18 gauge.

Features:

  • 20 inches
  • Direct drive high efficiency motor
  • 18 gauge galvanized adjustable butterfly shutter
  • 3 aluminum blades
  • Heavy duty motor mount
  • Hinged rear guard for easy cleaning and maintenance
  • 2 year warranty
  • Download the Twister Exhaust Fan Installation Instructions

Specifications:

Rough Opening: 21 1/2" x 21 1/2"

  HP Volt Amps HZ Spd^ @ 0.00" SP @ .05" SP @ .10" SP @ .15" SP Air Flow Ratio RPM
CFM CFM/
Watt
CFM CFM/
Watt
CFM CFM/
Watt
CFM CFM/
Watt
VFT141132 1/3 115/230 3.5/1.7 60 1/Var 3120 12.1 2930 11.0 2630 9.7 2210 8.1 0.68 1725

^ variable speed fans require separate variable speed control to adjust fan speed

Warning. This product can expose you to chemicals including lead or chromium which are known to the State of California to cause cancer and or birth defects or other reproductive harm. For more information to go www.P65Warnings.ca.gov


exhaust-fan-20-inch.html
$285.00
20 Inch Wall Exhaust Fan - Variable Speed Controllable
20 Inch Wall Exhaust Fan - Variable Speed Controllable20 Inch Wall Exhaust Fan - Variable Speed Controllable
Item #JD VFT141132
AvailabilityUsually ships the next business day
Sale Price$285.00
Quantity


Description

The Twister Exhaust Fan has been around unchanged for 20 years.  If it works, why change it!  This 20" Twister exhaust fan features a butterfly shutter which opens on startup and closes when the fan is off.  This exhaust fan is perfect for ventilating garages, and other industrial and commercial spaces.

The motor is totally enclosed, maintenance free and has completely sealed ball bearings.  The fan is fully assembled and the rear guard conforms to OSHA 1910.212 (a)(5) safety requirements.  All you need to do to install it is cut your rough opening, attach to your building and wire it in.  For specific installation instructions you may download them here.

The prop is made from aluminum and has a zinc plated hub to provide smooth, vibration-free operation.  The 18 gauge galvanized butterfly shutter has an adjustable, positive draft-free closure.  The housing is heavy duty 18 gauge.

Features:

  • 20 inches
  • Direct drive high efficiency motor
  • 18 gauge galvanized adjustable butterfly shutter
  • 3 aluminum blades
  • Heavy duty motor mount
  • Hinged rear guard for easy cleaning and maintenance
  • 2 year warranty
  • Download the Twister Exhaust Fan Installation Instructions

Specifications:

Rough Opening: 21 1/2" x 21 1/2"

  HP Volt Amps HZ Spd^ @ 0.00" SP @ .05" SP @ .10" SP @ .15" SP Air Flow Ratio RPM
CFM CFM/
Watt
CFM CFM/
Watt
CFM CFM/
Watt
CFM CFM/
Watt
VFT141132 1/3 115/230 3.5/1.7 60 1/Var 3120 12.1 2930 11.0 2630 9.7 2210 8.1 0.68 1725

^ variable speed fans require separate variable speed control to adjust fan speed



Warning. This product can expose you to chemicals including lead or chromium which are known to the State of California to cause cancer and or birth defects or other reproductive harm. For more information to go www.P65Warnings.ca.gov


Question: Would there be any problem doing a ceiling mount with this fan?
Answer: This Twister fan can only be installed in a wall.
